Models
ProfiVac 300
| Motor data | |
|---|---|
| Volt | 230 Volt, 50 Hz |
| Watt | 1,400 Watt |
| Turbines | 3-stage, bypass |
| Performance data | |
|---|---|
| Max. under pressure | 2,980mm WS, 29.8kPA, 298mbar |
| Max. air output | 180m³/h, 50 litres per second |
| Max. air wattage | 485 |
| Control voltage | 24 Volt |
| Max. pipe length | 50m |
| Simultaneous users | 1 |
| Dimenions | |
|---|---|
| Height | 1005mm |
| Diameter | 306mm |
| Weight | 16.6kg |
| Noise level (dBA) | 54 |
| Dirt container contents | 22 litres |
| Filter data | |
|---|---|
| Filter | Polyester, washable, <0.2µ |
| Filter surface | 1.37m² |

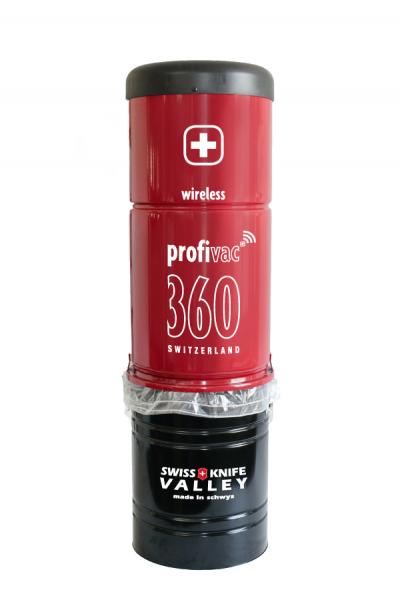

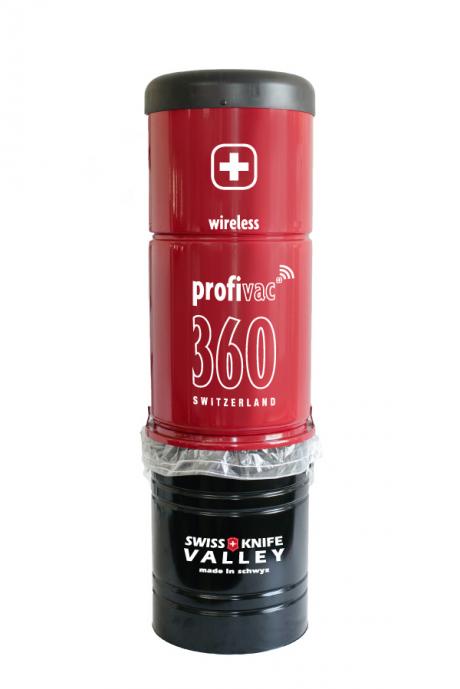

ProfiVac 360
| Motor data | |
|---|---|
| Volt | 230 Volt, 50 Hz |
| Watt | 1,800 Watt |
| Turbines | 3-stage, bypass |
| Performance data | |
|---|---|
| Max. under pressure | 3,700mm WS, 37kPA, 370mbar |
| Max. air output | 190m³/h, 53 litres per second |
| Max. air wattage | 584 |
| Control voltage | |
| Max. pipe length | 70m |
| Simultaneous users | 1 |
| Dimenions | |
|---|---|
| Height | 1005mm |
| Diameter | 306mm |
| Weight | 16.6kg |
| Noise level (dBA) | 54 |
| Dirt container contents | 22 litres |
| Filter data | |
|---|---|
| Filter | Polyester, washable, <0.2µ |
| Filter surface | 1.37m² |
ProfiVac 430
| Motor data | |
|---|---|
| Volt | 230 Volt, 50 Hz |
| Watt | 2,400 Watt |
| Turbines | 5-stage, bypass |
| Performance data | |
|---|---|
| Max. under pressure | 4,500mm WS, 45kPA, 450mbar |
| Max. air output | 260m³/h, 72 litres per second |
| Max. air wattage | 850 |
| Control voltage | 24 Volt |
| Max. pipe length | 100m |
| Simultaneous users | 1 |
| Dimenions | |
|---|---|
| Height | 1135mm |
| Diameter | 376mm |
| Weight | 27.4kg |
| Noise level (dBA) | 58 |
| Dirt container contents | 32 litres |
| Filter data | |
|---|---|
| Filter | Polyester, washable, <0.2µ |
| Filter surface | 1.37m² |
ProfiVac 430 PowerControl
| Motor data | |
|---|---|
| Volt | 230 Volt, 50 Hz |
| Watt | 2,400 Watt |
| Turbines | 5-stage, bypass |
| Performance data | |
|---|---|
| Max. under pressure | 4,500mm WS, 45kPA, 450mbar |
| Max. air output | 260m³/h, 72 litres per second |
| Max. air wattage | 850 |
| Control voltage | 24 Volt |
| Max. pipe length | 100m |
| Simultaneous users | 1 |
| Dimenions | |
|---|---|
| Height | 1135mm |
| Diameter | 376mm |
| Weight | 27.4kg |
| Noise level (dBA) | 58 |
| Dirt container contents | 32 litres |
| Filter data | |
|---|---|
| Filter | Polyester, washable, <0.2µ |
| Filter surface | 1.37m² |
ProfiVac 430 IntelligentSystem
| Motor data | |
|---|---|
| Volt | 230 Volt, 50 Hz |
| Watt | 2,400 Watt |
| Turbines | 5-stage, bypass |
| Performance data | |
|---|---|
| Max. under pressure | 4,500mm WS, 45kPA, 450mbar |
| Max. air output | 260m³/h, 72 litres per second |
| Max. air wattage | 850 |
| Control voltage | 24 Volt |
| Max. pipe length | 100m |
| Simultaneous users | 1 |
| Dimenions | |
|---|---|
| Height | 1135mm |
| Diameter | 376mm |
| Weight | 27.4kg |
| Noise level (dBA) | 58 |
| Dirt container contents | 32 litres |
| Filter data | |
|---|---|
| Filter | Polyester, washable, <0.2µ |
| Filter surface | 1.37m² |
